Any Transportable length from 1.2 Mtr to 11.8 Mtr or more
Max. 1500mm Plain Width & 1100mm Profiled/Corrugated Width
1.5mm to 4.0mm
80 to 85 % Maximum
Any Opaque Color
As per Indian Standard IS : 12866 or Any other International Standard on demand

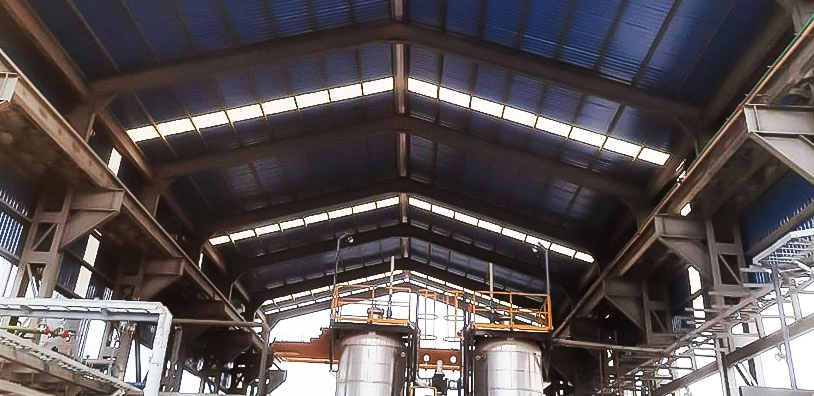

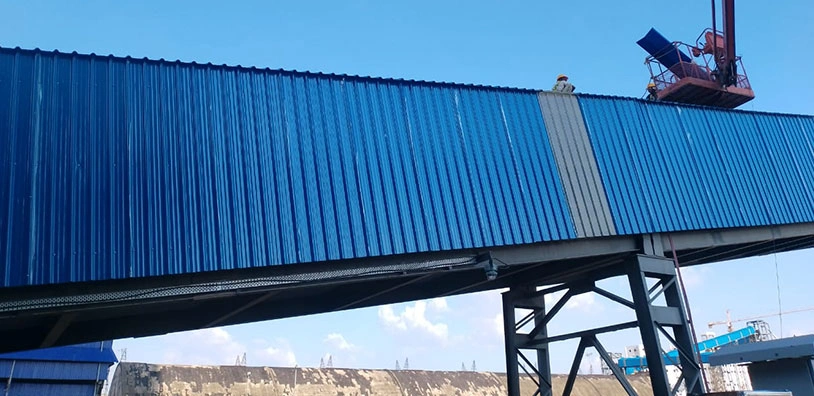

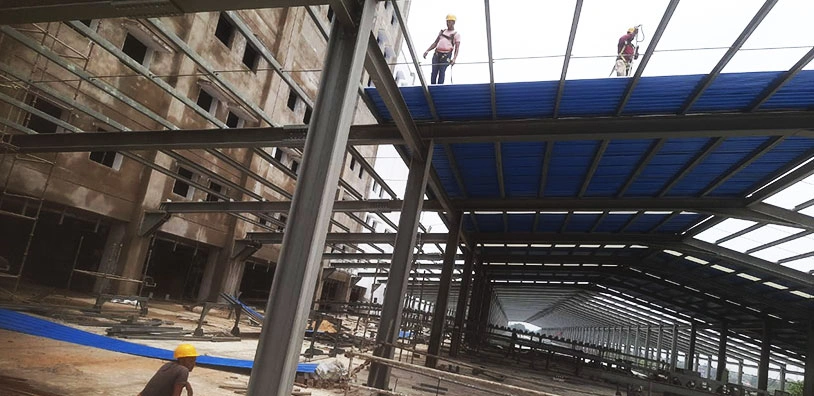

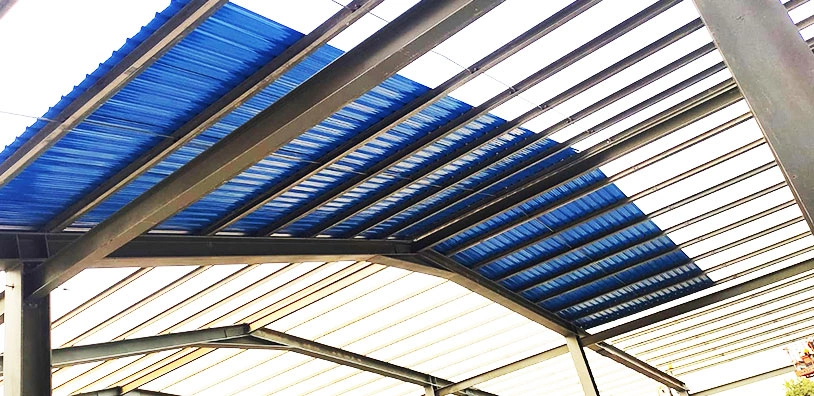

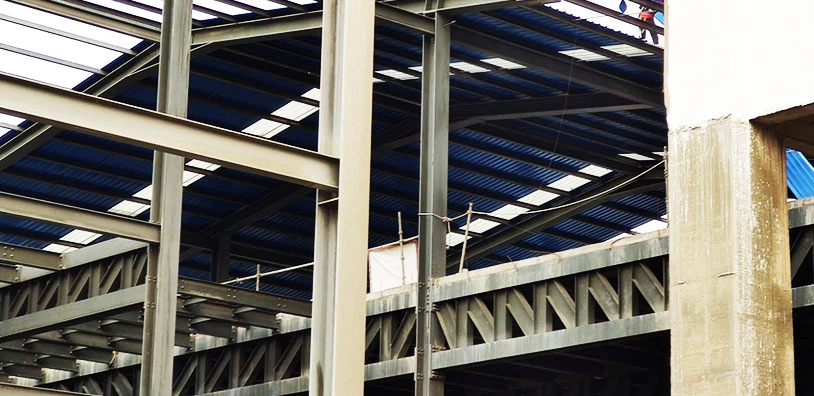

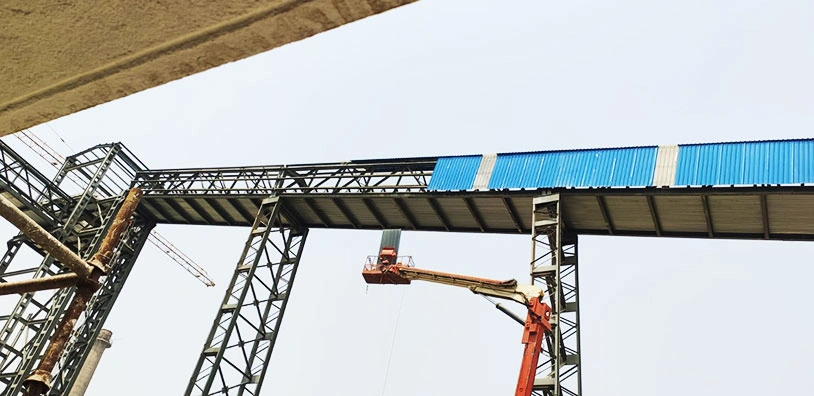

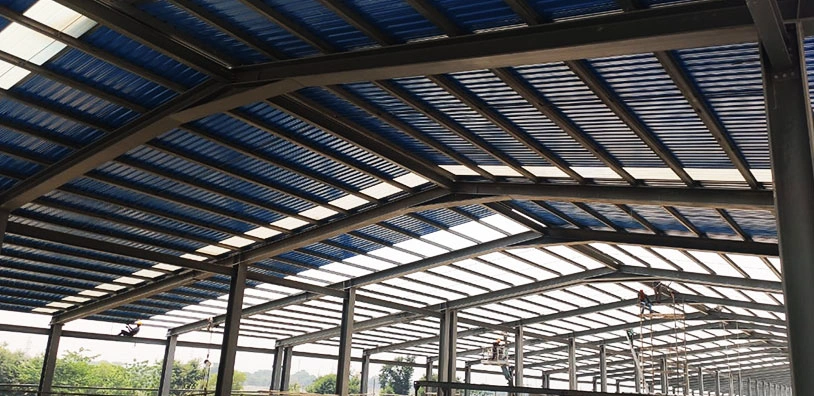

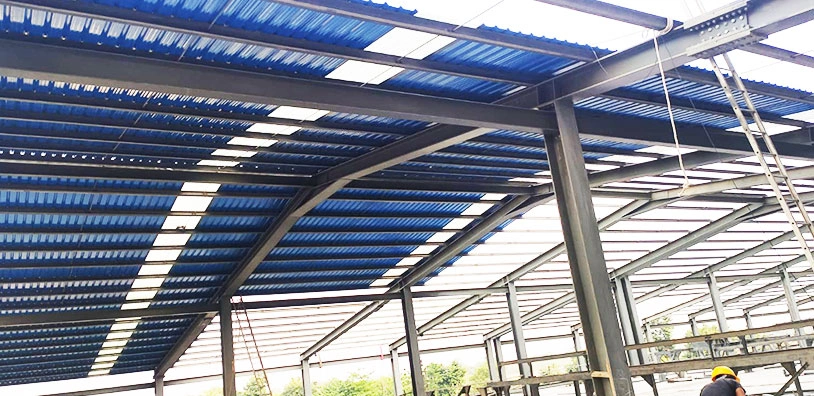

” Rooffit “ offers Opaque FRP Panels for Casing & Covering of Cooling Towers,\Water Treatment Plants, Roofing/Cladding in Industrial Sheds and are resistant to mild corrosive environments, like in coastal areas, acidic fumes, salt or acidic water, it allows exposure of the product in outdoor corrosive areas without alterations in their chemical composition and physical behavior.
These panels are lightweight, easy to install and long lasting and have a zero light transmission, it provides color durability, resistant to extremes of weather conditions, mild corrosive environment as well as creating an optimum aesthetic effect.
Normally, Color Coated Profile Metal Sheets are used for Roofing/Cladding in factories or industries under normal weathering and environmental conditions. In general, Mild Steel are highly corrosive material even under normal environmental conditions but the same is color coated with few microns of weather resistant paints which has limited self life.
But in presence of harsh weathering, chemical fumes or coastal environments, the M.S. Color Coated Profile Sheets are under constant threat of corrosion and not recommended for Roofing taking into consideration of minimum 10 years self life.
| S.No. | Parameters | Requirements |
|---|---|---|
| 1. | Tensile Strength | 80 Mpa |
| 2. | Impact Strength | 8 Joules |
| 3. | Shear Strength | 90 Mpa |
| 4. | Modulus of Elasticity | 5500 Mpa |
| 5. | Compressive Strength | 135 Mpa |
| 6. | Flexural Strength | 150 Mpa |
| 7. | Specific Gravity | 1.45 |
| 8. | Thermal Expansion | 3.0 X 10-5 cm/°C |
| 9. | Thermal Conductivity | 158 watt/m °C |
| 10. | Water Absorption | 2% in 24 hrs. / 26°C |
| 11. | Range | -20°C to +130°C |
